Centos安装Orion Visor

Centos安装Orion Visor

简介

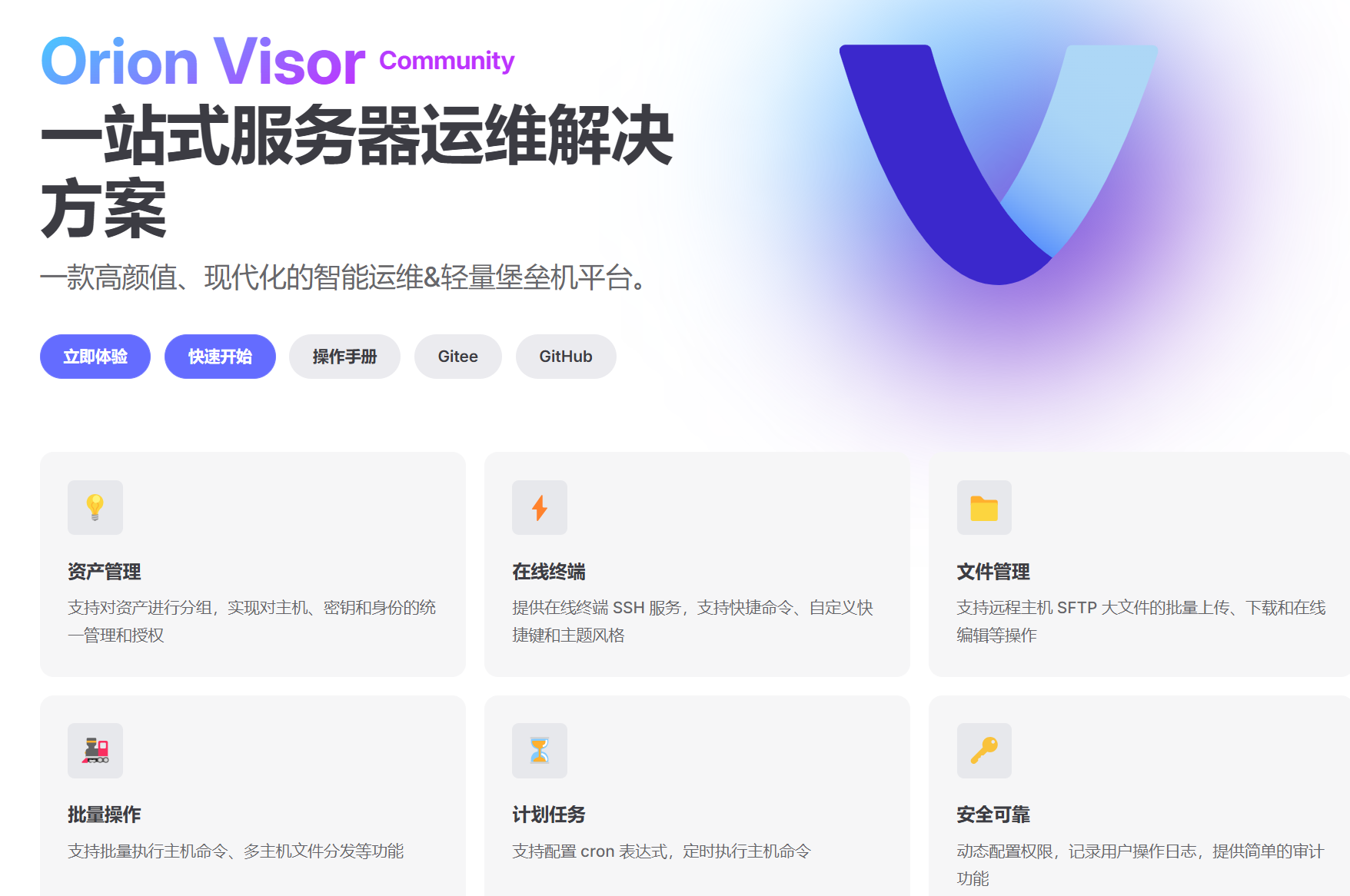

官网：首页 | Orion Visor (lijiahangmax.github.io)

所需环境

• jdk 1.8

• mysql 8.0.+

• redis 6.0.+

• maven 3.5.+

• node 18.12.+

• pnpm 9.1.+

• nginx

提示

⚡ maven 推荐使用阿里云 mirror ⚡ npm 建议使用淘宝镜像 npm config set registry https://registry.npmmirror.com/ ⚡ pnpm 建议使用淘宝镜像 pnpm config set registry https://registry.npmmirror.com/

环境部署参考部署文档

部署过程

项目目录：/home/orion

站点目录：/home/website/ma.xlyw.top

nginx目录：/usr/local/nginx/

拉取项目

# 切换至项目目录
cd /home/orion
# 拉取项目
# github
git clone https://github.com/dromara/orion-visor
# gitee
git clone https://gitee.com/dromara/orion-visor

初始化数据库

新建数据库orion_visor

导入数据库

orion-visor/sql/init-1-schema-databases.sql
orion-visor/sql/init-2-schema-tables.sql
orion-visor/sql/init-3-schema-quartz.sql
orion-visor/sql/init-4-data.sql

构建后端代码

# 修改配置文件 (mysql, redis, secret-key)
orion-visor/orion-visor-launch/src/main/resources/application-prod.yaml
​
# 进入代码目录
cd orion-visor
# 编译
mvn -U clean install -DskipTests

构建前端代码

# 进入代码目录
cd orion-visor/orion-visor-ui
# 下载 pnpm
npm i -g pnpm
# 下载依赖
pnpm i
# 编译
pnpm build
# 内存不足会导致失败

修改nginx配置

server {
    listen       80;
    server_name  ma.xlyw.top;
    client_max_body_size 1024m;
​
    # 是否启动 gzip 压缩
    gzip  on;
    # 需要压缩的常见静态资源
    gzip_types text/plain application/javascript application/x-javascript text/css application/xml text/javascript application/x-httpd-php image/jpeg image/gif image/png;
    # 如果文件大于 1k 就启动压缩
    gzip_min_length 1k;
    # 缓冲区
    gzip_buffers 4 16k;
    # 压缩的等级
    gzip_comp_level 2;
    # access_log  /var/log/nginx/host.access.log  main;
​
    location / {
        root   /usr/share/nginx/html;
        index  index.html index.htm;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP  $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        # web history 模式 404
        try_files $uri $uri/ /index.html;
    }
​
    location /orion-visor/api {
        proxy_pass    http://localhost:9200/orion-visor/api;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP  $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
​
     location /orion-visor/keep-alive {
        proxy_pass    http://localhost:9200/orion-visor/keep-alive;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection "upgrade";
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_read_timeout 3600s;
        proxy_send_timeout 3600s;
    }
​
​
}

部署

复制 orion-visor/orion-visor-ui/dist 到 /home/website/ma.xlyw.top
复制 orion-visor/orion-visor-launch/target/orion-visor-launch.jar 到 /home/orion
# 启动后台服务
nohup java -jar orion-visor-launch.jar --spring.profiles.active=prod 2>&1 &
# 启动 nginx
service nginx start

测试访问

等待后端服务启动后 (2min±) 在浏览器中输入 http://localhost:1081/ 访问

账号: admin 密码: admin

后端java程序注册成服务

vi /etc/systemd/system/orion.service
​
[Unit]
Description=orion-visor Service
​
[Service]
User=nobody
WorkingDirectory=/home/orion
ExecStart=/usr/bin/java -Xmx256m -jar /home/orion/orion-visor-launch.jar --spring.profiles.active=prod
SuccessExitStatus=143
TimeoutStopSec=10
Restart=on-failure
RestartSec=5
​
[Install]
WantedBy=multi-user.target
​
​
############
systemctl daemon-reload
systemctl start orion
